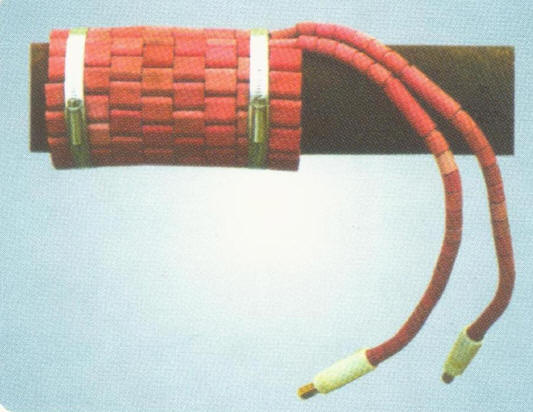

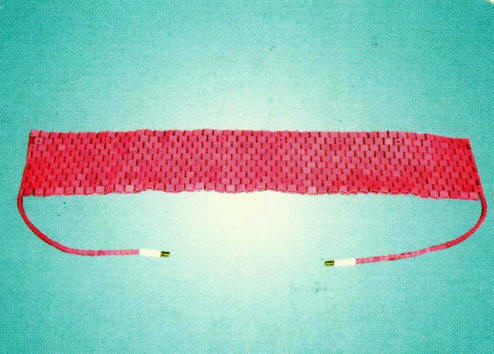

LCD crawler-type ceramics electric heater
Model NO. |
Heating size(mm)
hem*straight |
Working voltage(V) |
Rated power(kw) |
Applicable tube's diameter(mm) |
LCD26-220 |
680*340 |
220 |
10 |
φ219 |
LCD33-220 |
860*260 |
220 |
10 |
φ273 |
LCD39-220 |
1020*220 |
220 |
10 |
φ325 |
LCD44-220 |
1160*200 |
220 |
10 |
φ377 |
LCD52-220 |
1360*160 |
220 |
10 |
|
LCD70-220 |
1860*120 |
220 |
10 |
|
LCD19-220 |
500*440 |
220 |
10 |
φ159 |
LCD16-220 |
420*540 |
220 |
10 |
|
LCD19-110 |
500*220 |
110 |
5 |
|
LCD16-110 |
420*260 |
110 |
5 |
|
LCD23-110 |
600*180 |
110 |
5 |
|
LCD10-55 |
260*200 |
55 |
2.5 |
|
LCD16-55 |
410*120 |
55 |
2.5 |
|

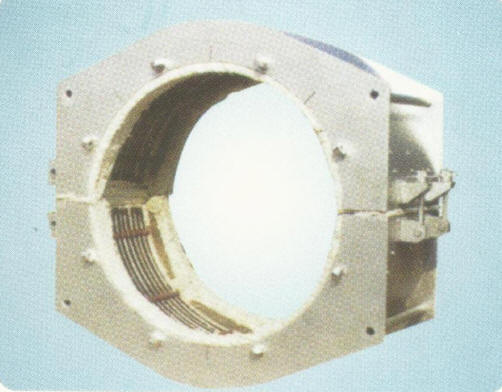

LCD-Q large opposed type heater
Model NO. |
Applicable tube's diameter (mm) |
Working voltage (V) |
Rated power (KW) |
LCD-Q-33 |
Φ33 |
36 |
1.7 |
LCD-Q-48 |
Φ48 |
55 |
2.5 |
LCD-Q-76 |
Φ76 |
110 |
5 |
LCD-Q-89 |
Φ89 |
110 |
5 |
LCD-Q-108 |
Φ108 |
110 |
5 |
LCD-Q-133 |
Φ133 |
110 |
5 |
LCD-Q-159 |
Φ159 |
110 |
5 |
LCD-Q-219 |
Φ219 |
220 |
10 |
LCD-Q-273 |
Φ273 |
220 |
10 |
LCD-Q-325 |
Φ325 |
220 |
20 |
LCD-Q-377 |
Φ377 |
220 |
20 |
LCD-Q-426 |
Φ426 |
220 |
20 |

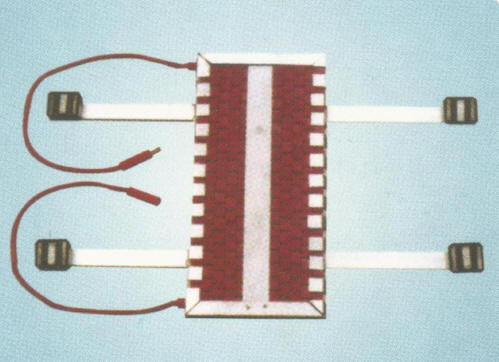

LCD-X type adsorption electric heater
Model NO. |
Heating size (mm) |
Working voltage (V) |
Rated power (KW) |
hem×straight |
LCD23-X-110 |
620×200 |
110 |
5.0 |
LCD16-X-110 |
440×280 |
110 |
5.0 |
LCD19-X-110 |
630×200 |
60 |
4.0 |
LCD13-X-110 |
450×280 |
60 |
4.0 |

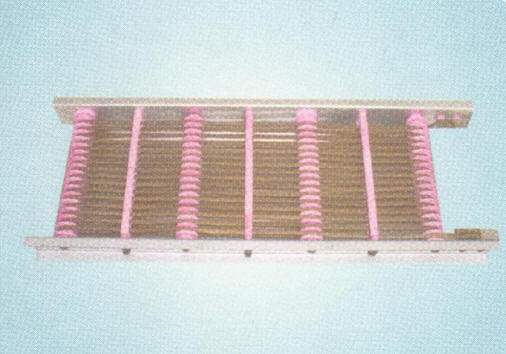

HDO-P type flat lo-voltage high-temp. electric heater
Model NO. |
External dimensions (mm) |
Working voltage (V) |
Rated power (kw) |
HDO-5.5p |
620*390*70 |
36 |
5.5 |
HDO-6p |
460*250*70 |
24 |
6 |
HDO-6p |
540*250*70 |
24 |
6 |
HDO-9p |
630*250*70 |
36 |
9 |
HDO-9p |
590*320*70 |
36 |
9 |
HDO-11p |
990*390*70 |
60 |
11 |
HDO-14p |
930*320*70 |
60 |
14 |
HDO-14p |
760*390*70 |
60 |
14 |

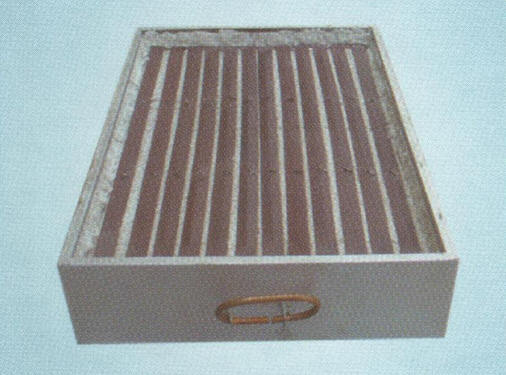

NJ Internal heated/frame type whole heat treatment heater
External demensiosn: 1000mm*450mm*80mm Working voltage220V，Rated power10kw. Highest working temp.: 1000℃

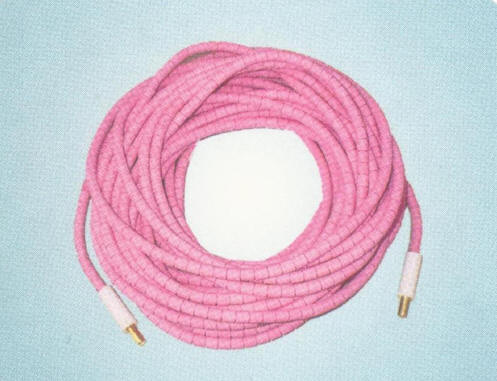

SCD type rope shaped heater
Model NO. |
Heating size (m) |
Working voltage (V) |
Rated power (kw) |
Highest temp. (℃) |
SCD-220 |
19 |
220 |
10 |
1050 |
SCD-110 |
9.5 |
110 |
5 |
1050 |
SCD-55 |
4.75 |
55 |
2.5 |
1050 |

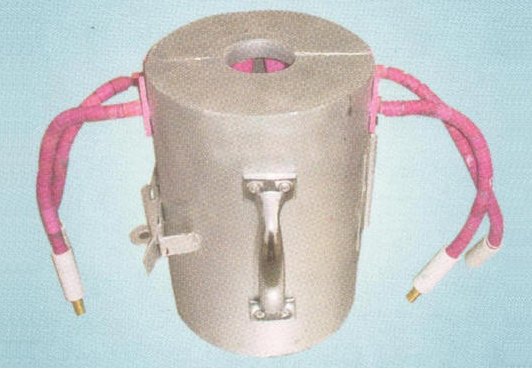

HDO-Q opposed type electric heater
It can locally heat large pipes and fittings. Pipe diameter: 2000mm below，working temp.: around 800℃.
