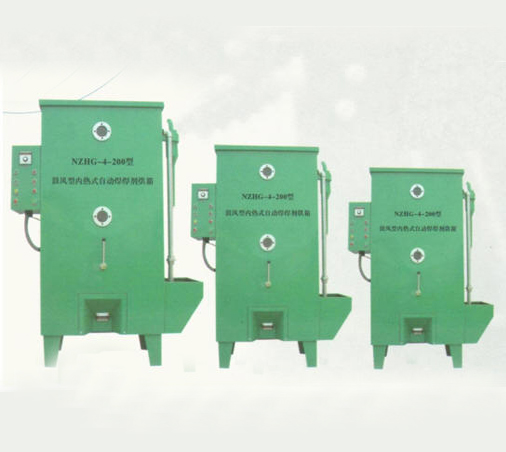

NZHG drying type oven
Model NO. |
NZHG-100 |
NZHG-200 |
NZHG-550 |
Drying room oadage (kg) |
100 |
200 |
500 |
Working power supply |
four wire three phase |
Heater Power(KW) |
4 |
4 |
6 |
Togripmaterial speed kg/min |
3.4 |
3.4 |
3.4 |
YGCH-X2 type series far IR high/low temp. program control oven
Drying room rated temp.: 500℃, heat preservation room rated temp.≤150℃, Spec.: 60/100/150/200/400
YGCH-G1 series far IR record autoregulation oven
Model NO. |
load (kg) |
power (kw) |
Working voltage(V) |
Working room dimensions (mm) |
YGCH-G1-60 |
60 |
3.5 |
220 |
580*450*470 |
YGCH-G1-100 |
100 |
6.0 |
220 |
940*520*470 |
YGCH-G1-150 |
150 |
7.5 |
380 |
1100*620*470 |
YGCH-G1-200 |
200 |
9.0 |
380 |
1270*1570*520 |
YGCH-G1-400 |
400 |
15 |
380 |
1270*1570*520 |
YGCH-G1-1000 |
1000 |
30 |
380 |
1650*2020*590 |

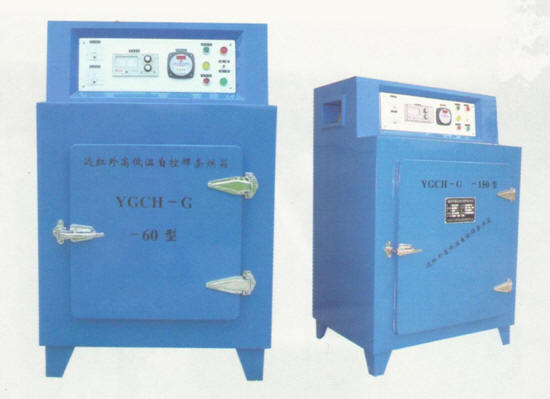

YGCH-G series far IR high/low temp. autoregulation oven
Model NO. |
load (kg) |
power (kw) |
Working voltage (V) |
YGCH-G-30 |
30 |
3.0 |
220 |
YGCH-G-60 |
60 |
3.5 |
220 |
YGCH-G-100 |
100 |
6.0 |
220 |
YGCH-G-150 |
150 |
7.5 |
380 |
YGCH-G-200 |
200 |
9.0 |
380 |
YGCH-G-400 |
400 |
15 |
380 |
YGCH-G-1000 |
1000 |
30 |
380 |
YGCH-X1 series far IR autoregulation oven
Model NO. |
Drying room load (kg) |
Store load (kg) |
Drying room power
(kw) |
Store room power (kw) |
Working voltage
(V) |
YGCH-X1-40 |
40 |
40 |
3.0 |
1.0 |
220 |
YGCH-X1-60 |
60 |
40 |
3.5 |
1.0 |
220 |
YGCH-X1-100 |
100 |
60 |
6.0 |
1.0 |
220 |
YGCH-X1-150 |
150 |
60 |
7.5 |
1.0 |
380 |
YGCH-X1-200 |
200 |
80 |
9.0 |
2.0 |
380 |

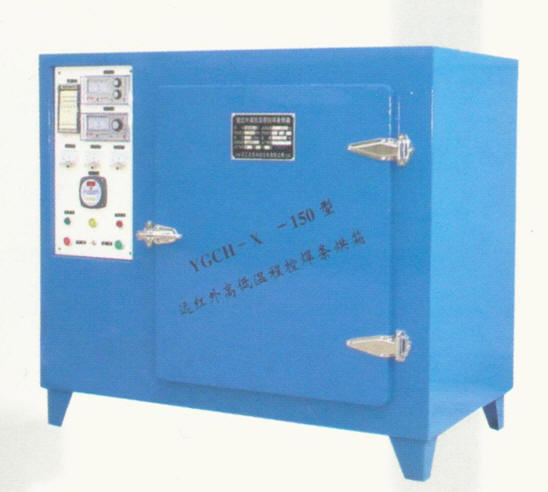

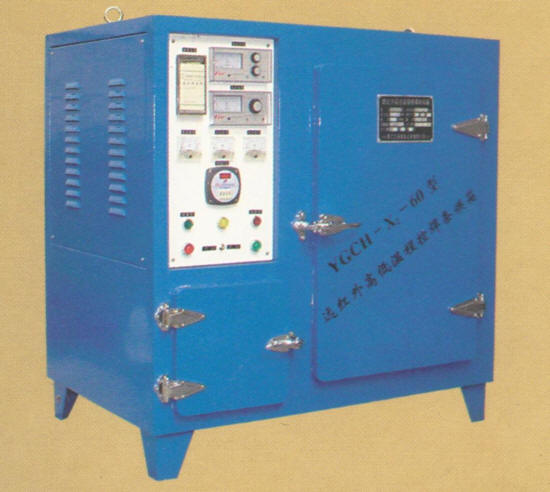

YGCH-X series far IR program control oven
Model NO. |
load (kg) |
power (kw) |
Working voltage (V) |
YGCH-X-30 |
30 |
3.0 |
220 |
YGCH-X-60 |
60 |
3.5 |
220 |
YGCH-X-100 |
100 |
6.0 |
220 |
YGCH-X-150 |
150 |
7.5 |
380 |
YGCH-X-200 |
200 |
9.0 |
380 |
